5.0 Inch TFT LCD Touch Screen Display
High-performance 5.0-inch TFT-LCD touch module with 800×480 resolution RGB interface, delivering exceptional visual clarity and responsive touch functionality for industrial and commercial applications.
Product Overview
The YVT050WVR-H01 is a 5.0-inch high-performance TFT-LCD touch module developed by Shenzhen Yingzhanying Technology. This comprehensive display solution integrates a TFT-LCD panel, driver IC, FPC, backlight unit, and capacitive touch panel to deliver superior visual performance and reliable operation.
Key Specifications
| Product |
5.0 inch TFT-LCD Touch Module |
| Module Number |
YVT050WVR-H01 |
| Resolution |
800×480 dots (RGB) |
| Display Mode |
Normally Black, Transmissive |
| Brightness |
1000 Cd/m² (Typical) |
| Outline Dimensions |
120.70(H)×75.90(V)×4.45(T)mm (Without FPC and Solder) |
| Viewing Direction |
All O'Clock |
| Active Area |
108.00(H)×64.80(V)mm |
| Interface |
RGB Interface |
| Touch Function |
Capacitive Touch (X1/X2/Y1/Y2 Pins) |
| Backlight |
18 pcs White LEDs |
| Storage Temperature |
-30 ~ +80 ℃ |
| Contrast Ratio |
800:1 (Typical) |
| Operating Temperature |
-20 ~ +70 ℃ |
Technical Features
- 800×480 pixel resolution supporting 16.7 million colors for vivid visual output
- Normally black, transmissive display mode with all-direction viewing angle
- RGB interface for fast, stable data transmission
- 18 white LED backlight with typical luminance of 1000 Cd/m²
- 800:1 contrast ratio for excellent visibility in various lighting conditions
- RoHS compliant materials ensuring environmental safety
- Wide operating temperature range: -20℃ to +70℃
- Built-in capacitive touch function with X1/X2/Y1/Y2 control pins
- Response time (Tr+Tf): 30~40ms for smooth display switching
- NTSC color gamut: 60% for natural color reproduction

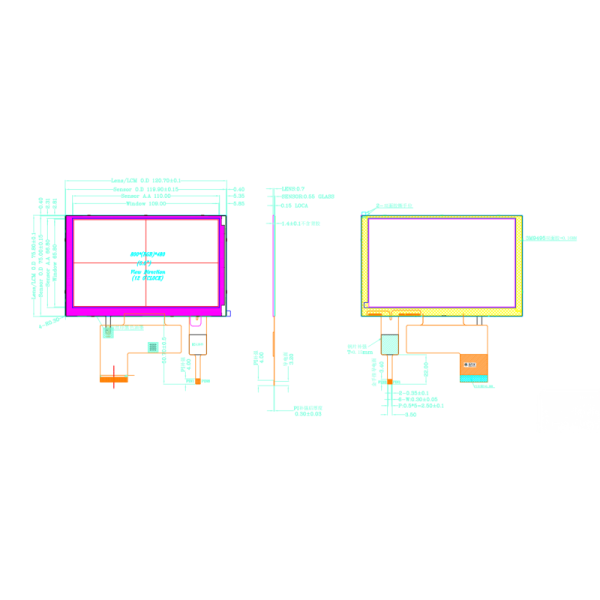

Technical Drawing
Electrical Specifications
The YVT050WVR-H01 LCD touch module ensures reliable electrical and touch performance with the following specifications:
Power Requirements
- Logic voltage (VDD): 2.8V to 3.6V (Typical 3.3V)
- Input high level (VIH): ≥ 0.7VDD
- Input low level (VIL): ≤ 0.3VDD
- LED backlight supply voltage: 16.8V~20.4V (Typical 18.6V)
- LED current (ILED): 20mA per LED (constant current drive recommended)
Environmental Specifications
- Operating temperature: -20℃ ~ +70℃
- Storage temperature: -30℃ ~ +80℃
- Humidity: Ta≤40℃: max 85%RH; Ta≥40℃: absolute humidity must be lower than 85%RH at 40℃
PIN Definition
| PIN |
Symbol |
Description |
| 1 |
LED_K |
Backlight LED Ground |
| 2 |
LED_A |
Backlight LED Power (16.8V~20.4V) |
| 3 |
GND |
Ground |
| 4 |
VDD |
Power Supply (2.8V~3.6V, Typ. 3.3V) |
| 5-12 |
R0-R7 |
Red data bus |
| 13-20 |
G0-G7 |
Green data bus |
| 21-28 |
B0-B7 |
Blue data bus |
| 29 |
GND |
Ground |
| 30 |
PCLK |
Data clock |
| 31 |
DISP |
Standby mode select pin |
| 32 |
HSYNC |
Line SYNC signal |
| 33 |
VSYNC |
Frame SYNC signal |
| 34 |
DE |
Data Enable Input |
| 35 |
NC |
No connection |
| 36 |
GND |
Ground |
| 37 |
X1 |
Touch Panel Control Pin (X1) |
| 38 |
Y1 |
Touch Panel Control Pin (Y1) |
| 39 |
X2 |
Touch Panel Control Pin (X2) |
| 40 |
Y2 |
Touch Panel Control Pin (Y2) |
Application Scenarios
The YVT050WVR-H01 5.0-inch TFT-LCD touch module is engineered for diverse industrial and commercial applications:
- Handheld Industrial Terminals: Data collectors, barcode scanners, and portable measurement devices
- Smart Home Control Panels: Home automation interfaces and control systems
- Portable Medical Devices: Blood glucose meters, oximeters, and diagnostic equipment
- Automotive Auxiliary Screens: Navigation displays and vehicle status monitors
- IoT Smart Devices: Connected device interfaces and status displays
- Educational Devices: Children's learning tools and interactive educational products
- Portable Entertainment Products: Media players and gaming devices
Customization Options
The YVT050WVR-H01 offers comprehensive customization to meet specific application requirements:
FPC Design
Flexible adjustment of FPC layout, length, and connector type to fit system installation requirements.
Cover Glass
Customizable size, thickness (0.5mm~1.1mm), surface printing (logo, pattern), and hardness (3H~9H) for different usage scenarios.
Brightness Tuning
Adjustable brightness from 500~1500 Cd/m² to adapt to indoor, outdoor, or low-power applications.
Touch Optimization
Customizable touch sensitivity, driver IC matching, and optional multi-touch functionality for specific application needs.
Interface Adaptation
Support for interface conversion (RGB to LVDS/MIPI) to match different mainboard designs and system architectures.
Key Highlights: 5.0-inch touch screen, 800×480 resolution, RGB interface, 1000 Cd/m² high brightness, all-direction viewing angle, RoHS compliant, wide temperature range operation.
