7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Display Size : 7 inch

Resolution : Optional

Display Type : IPS

Power supply : DC 12V

Brightness : 300

Audio : Realtek ACL662 Audio Controller

Supplier Type : Factory

Backlight Type : LED

Operating Temperature : -10-60

Touch : USB interface multi-touch

Outline Dimension : 225.04*160.7*59mm

Brand : BOE

Operating System : Win-dows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13

Type : Lcm

Mounting Type : Embedded

Brand Name : YZY

Model Number : YCXX6-7

Certification : CE、EMC

Place of Origin : Guangdong, China

MOQ : 100

Price : $105-119/pieces

Payment Terms : T/T

Supply Ability : 5K/Months

Delivery Time : 30-45Days

Packaging Details : BOX

I/O interface : HDMI/RJ45/VGA/DC/DVI

Contact Now

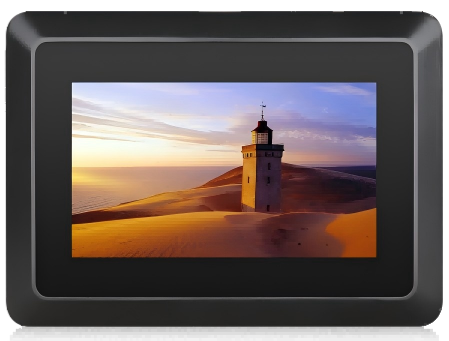

YCXX6-7 7 Inch Industrial Touch Display with Wide Temperature Range Pressure-Resistant Multi-Touch Embedded Monitor

The YCXX6-7 industrial touch display features a full aluminum alloy structure with fanless, fully enclosed design and low power consumption. This compact monitor is specifically engineered for diverse environmental conditions, ensuring long-term stable operation in harsh industrial settings.

7 Inch Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

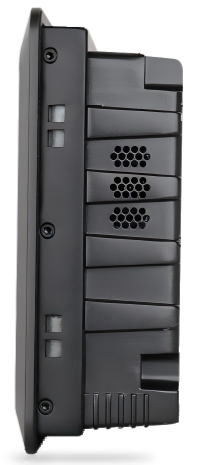

Robust Construction for Industrial Applications

The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.

Key Features

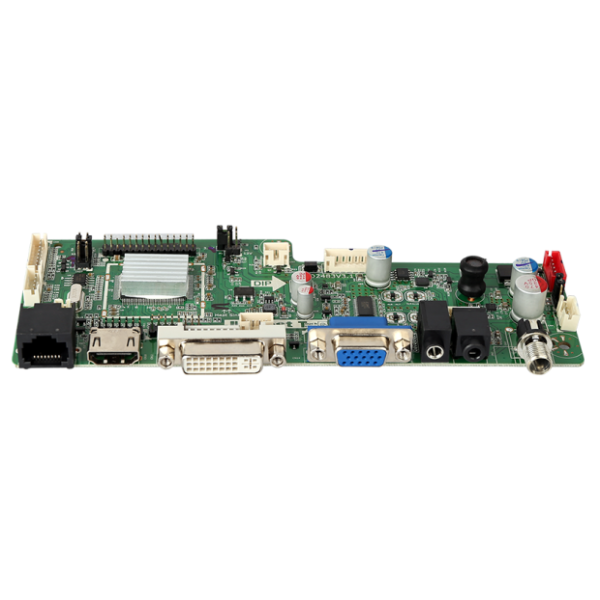

RTD2483 Chip for high-performance processing
Full military-grade aluminum alloy construction for high temperature resistance, corrosion resistance, and pressure resistance
Fine workmanship and long service life suitable for harsh environments
Efficient heat dissipation design compatible with fan cooling
Simplified interior without redundant wiring for uninterrupted operation
Capacitive touch screen with intuitive operation and high durability
Compatible with resistive touch technology
Comprehensive input and output interfaces for connecting various equipment

Technical Specifications

Screen Parameters

Parameter	Specification
Size	7"
Resolution	1024×600
View Angle	75/75/70/75 (L/R/U/D)
Color	Chroma: 16.7M
Brightness	300 cd/m²
Contrast	500:1
Response Time	6.5 ms
Display Area	154.214 × 85.92 mm
Pixel Pitch	0.1506×0.1432 (H×V)

Touch Screen & Connectivity

Parameter	Specification
Touch Type	Capacitive touch screen
Resolution	500DPI
Input Method	Handwriting or capacitive pen
Surface Hardness	7H
Calibration	Supported
HDMI	Support HDMI data output, up to 1080P
RJ45	Touch interface
VGA	1 port
DVI	1 port
Earphone Jack	3.5mm standard interface

Hardware Configuration

Component	Specification
CPU	RTD2483
System Language	English, Chinese
Video Input	PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions	AUTO, MENU, POWER, LEFT, RIGHT

Power Specifications

Parameter	Specification
DC Input	DC 12~24V
Power Consumption (Max)	12W
Power Input	AC 100-240V 50/60Hz (CCC, CE certified)
Power Output	DC12V / 4A

Dimensional Information

Overall Dimensions: 225.04 × 160.7 × 59mm (L × W × H)
